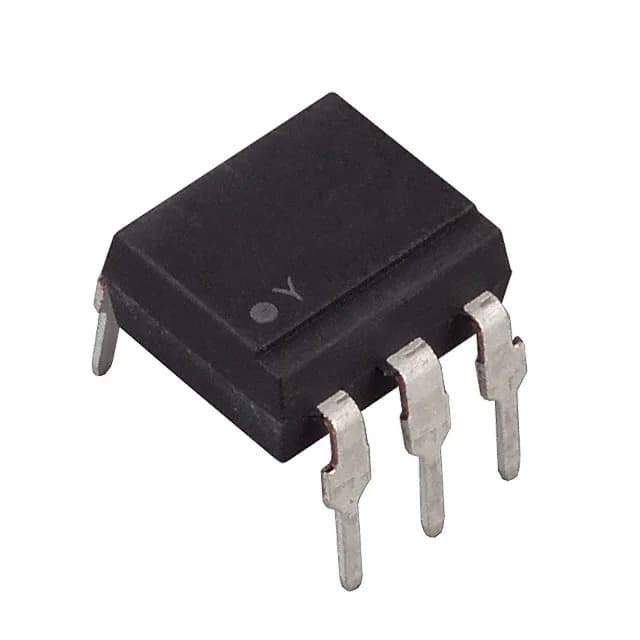

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists 4N25 produced by Lite-On Inc., a Optoisolators - Transistor, Photovoltaic Output component. Package: 6-DIP (0.300", 7.62mm). Operating Temperature: -55°C ~ 100°C. Part Status: Active. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| Input Type | DC |
|---|---|
| Output Type | Transistor with Base |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Vce Saturation (Max) | 500mV |
| Rise / Fall Time (Typ) | 3µs, 3µs |
| Voltage - Output (Max) | 30V |
| Supplier Device Package | 6-DIP |
| Current - Output / Channel | 100mA |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 20% @ 10mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Turn On / Turn Off Time (Typ) | - |
| Current - DC Forward (If) (Max) | 80mA |
