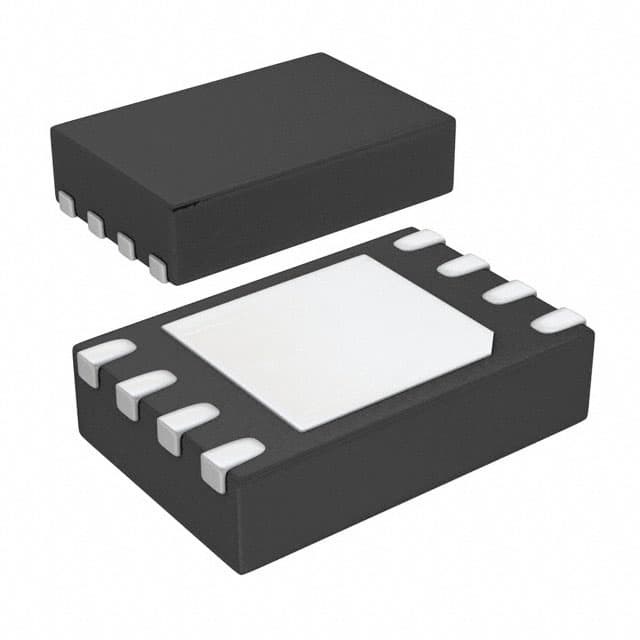

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists ADG1402BCPZ-REEL7 produced by Analog Devices Inc., a Interface - Analog Switches, Multiplexers, Demultiplexers component. Package: 8-WFDFN Exposed Pad, CSP. Operating Temperature: -40°C ~ 125°C (TA). Part Status: Active. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| Crosstalk | - |
|---|---|
| -3db Bandwidth | 120MHz |
| Switch Circuit | SPST - NC |
| Charge Injection | -12pC |
| Number of Circuits | 1 |
| Supplier Device Package | 8-LFCSP-WD (2x3) |
| On-State Resistance (Max) | 1.3 Ohm |
| Voltage - Supply, Dual (V±) | ±4.5 V ~ 16.5 V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| Voltage - Supply, Single (V+) | 5 V ~ 16.5 V |
| Current - Leakage (IS(off)) (Max) | 400pA |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 200 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 36pF, 41pF |
