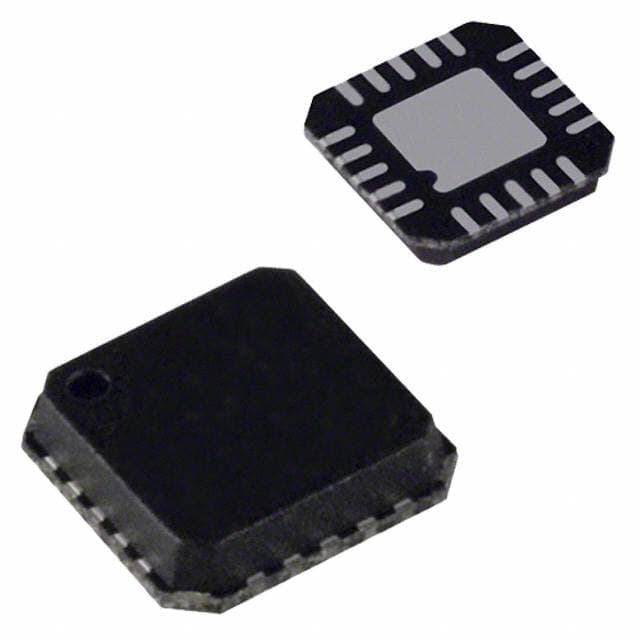

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists ADG788BCPZ-REEL7 produced by Analog Devices Inc., a Interface - Analog Switches, Multiplexers, Demultiplexers component. Package: 20-WFQFN Exposed Pad, CSP. Operating Temperature: -40°C ~ 85°C (TA). Part Status: Active. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| Crosstalk | -80dB @ 1MHz |
|---|---|
| -3db Bandwidth | 160MHz |
| Switch Circuit | SPDT |
| Charge Injection | 5pC |
| Number of Circuits | 4 |
| Supplier Device Package | 20-LFCSP-WQ (4x4) |
| On-State Resistance (Max) | 4.5 Ohm |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 21ns, 10ns (Typ) |
| Voltage - Supply, Single (V+) | 1.8 V ~ 5.5 V |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | - |
| Channel Capacitance (CS(off), CD(off)) | 11pF |
