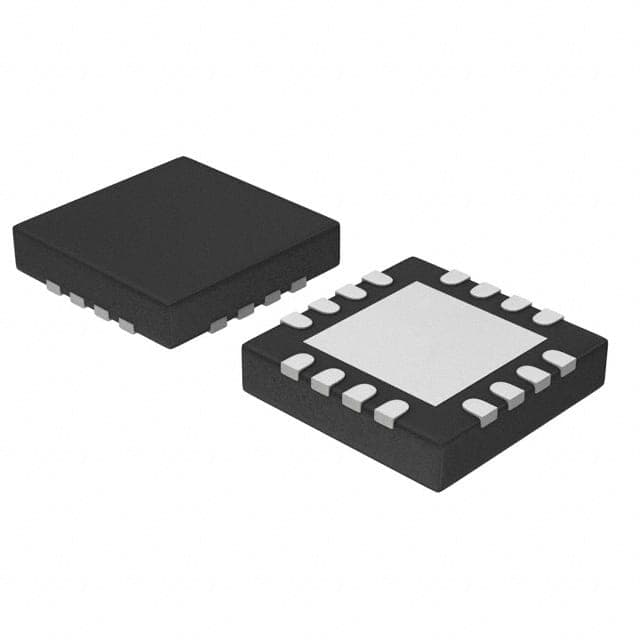

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists ADP1851ACPZ-R7 produced by Analog Devices Inc., a PMIC - Voltage Regulators - DC DC Switching Controllers component. Package: 16-WQFN Exposed Pad, CSP. Operating Temperature: -40°C ~ 125°C (TJ). Part Status: Active. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| Function | Step-Down |
|---|---|
| Topology | Buck |
| Clock Sync | Yes |
| Output Type | Transistor Driver |
| Output Phases | 1 |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start, Tracking |
| Duty Cycle (Max) | 90% |
| Number of Outputs | 1 |
| Serial Interfaces | - |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 1.5MHz |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 16-LFCSP-WQ (4x4) |
| Voltage - Supply (Vcc/Vdd) |
|---|
| 2.75 V ~ 20 V |
