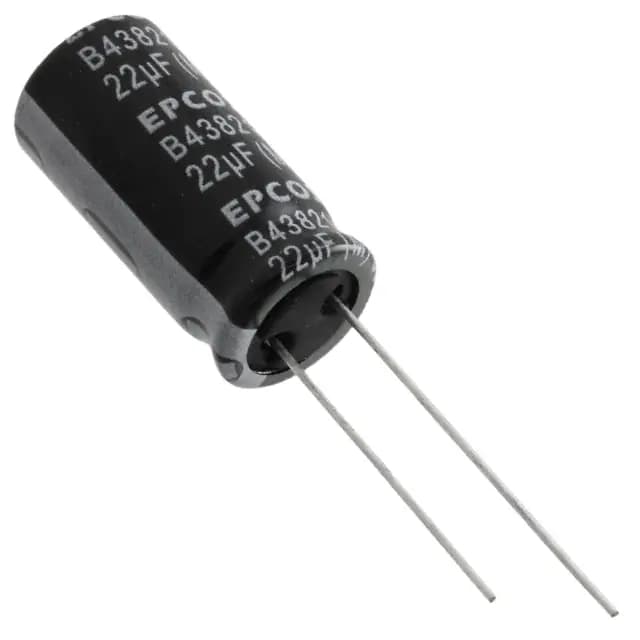

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists B43821F1686M000 produced by Unknown, a Aluminum Electrolytic Capacitors component. Series: B43821. Package: Radial, Can. Operating Temperature: -40°C ~ 85°C. Part Status: Not For New Designs. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| RoHS | RoHS |
|---|---|
| Ratings | - |
| Impedance | - |
| Tolerance | ±20% |
| Capacitance | 68 µF |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Polarization | Polar |
| Voltage - Rated | 160 V |
| Lifetime @ Temp# | 3000 Hrs @ 85°C |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| ESR (Equivalent Series Resistance) | 2.7Ohm @ 120Hz |
