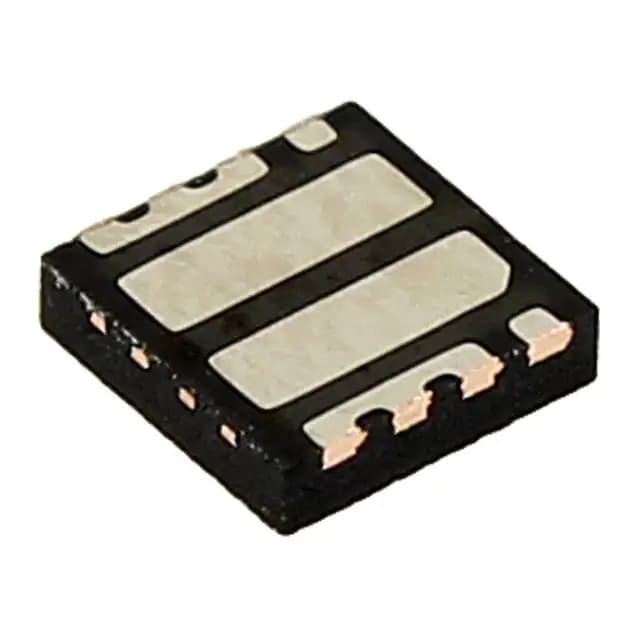

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists FDMC8030 produced by Fairchild/ON Semiconductor, a Transistors - FETs, MOSFETs - Arrays component. Package: 8-PowerWDFN. Operating Temperature: -55°C ~ 150°C (TJ). Part Status: Active. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| FET Type | 2 N-Channel (Dual) |
|---|---|
| FET Feature | Logic Level Gate |
| Power - Max | 800mW |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Rds On (Max) @ Id, Vgs | 10 mOhm @ 12A, 10V |
| Supplier Device Package | 8-MLP (3x3), Power33 |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Input Capacitance (Ciss) (Max) @ Vds | 1975pF @ 20V |
| Current - Continuous Drain (Id) @ 25°C | 12A |
