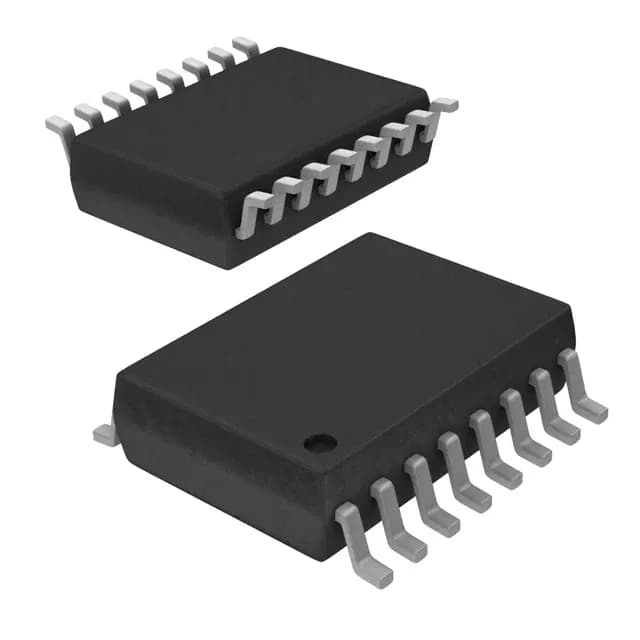

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists FOD8318R2 produced by Fairchild/ON Semiconductor, a Isolators - Gate Drivers component. Package: 16-SOIC (0.295", 7.50mm Width). Operating Temperature: -40°C ~ 100°C. Part Status: Active. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| Approvals | UL |
|---|---|
| Technology | Optical Coupling |
| Voltage - Supply | 15 V ~ 30 V |
| Number of Channels | 1 |
| Voltage - Isolation | 4243Vrms |
| Current - Peak Output | 3A |
| Rise / Fall Time (Typ) | 34ns, 34ns |
| Supplier Device Package | 16-SO |
| Current - Output High, Low | 2.5A, 2.5A |
| Pulse Width Distortion (Max) | 300ns |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Common Mode Transient Immunity (Min) | 35kV/µs |
