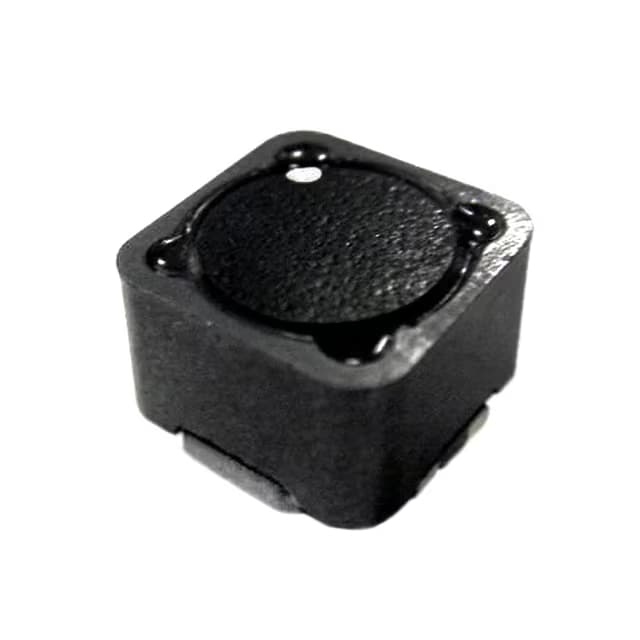

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists HM78D-12108R2MLFTR produced by TT Electronics/BI Magnetics, a Arrays, Signal Transformers component. Series: HM78D. Package: Nonstandard. Operating Temperature: -40°C ~ 125°C. Part Status: Discontinued at Digi-Key. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| RoHS | RoHS |
|---|---|
| Height | 0.413" (10.50mm) |
| Ratings | - |
| Shielding | Shielded |
| Tolerance | ±20% |
| Number of Coils | 2 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Current Rating - Series | 1.125 A |
| Current Rating - Parallel | 2.25 A |
| Current Saturation - Series | 6.45 A |
| DC Resistance (DCR) - Series | 72mOhm Max |
| Current Saturation - Parallel | 12.85 A |
| DC Resistance (DCR) - Parallel | 18mOhm Max |
| Inductance - Connected In Series | 32.8 µH |
| Inductance - Connected In Parallel | 8.2 µH |
