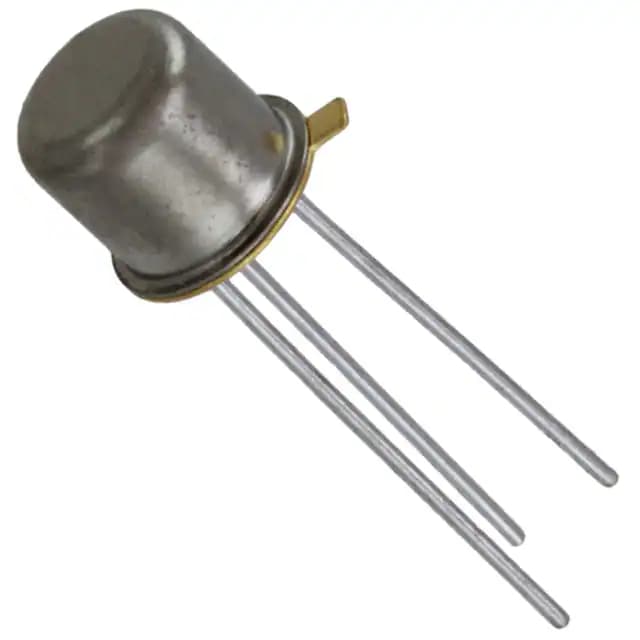

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists JANTX2N4857 produced by Microsemi Corporation, a Transistors - JFETs component. Package: TO-206AA, TO-18-3 Metal Can. Operating Temperature: -65°C ~ 200°C (TJ). Part Status: Active. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| FET Type | N-Channel |
|---|---|
| Power - Max | 360mW |
| Resistance - RDS(On) | 40 Ohm |
| Supplier Device Package | TO-18 |
| Current Drain (Id) - Max | - |
| Drain to Source Voltage (Vdss) | 40V |
| Voltage - Breakdown (V(BR)GSS) | 40V |
| Voltage - Cutoff (VGS off) @ Id | 6V @ 500pA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 100mA @ 15V |
| Input Capacitance (Ciss) (Max) @ Vds | 18pF @ 10V (VGS) |
