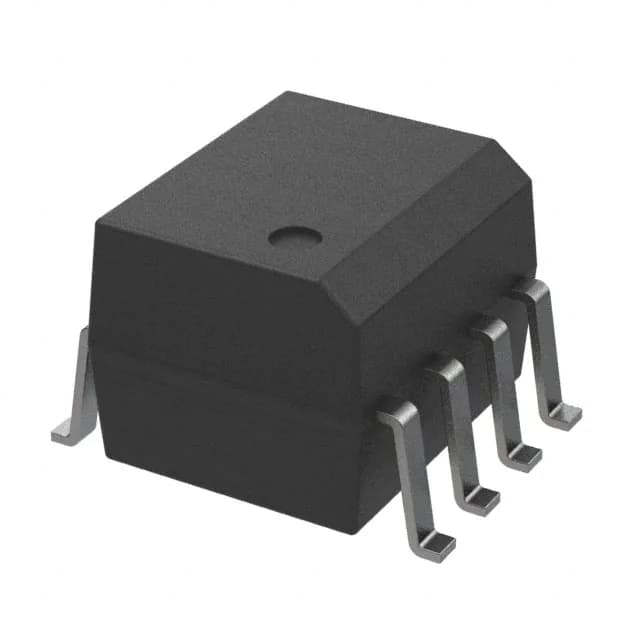

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists MOCD207M produced by Fairchild/ON Semiconductor, a Optoisolators - Transistor, Photovoltaic Output component. Package: 8-SOIC (0.154", 3.90mm Width). Operating Temperature: -40°C ~ 100°C. Part Status: Active. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| Input Type | DC |
|---|---|
| Output Type | Transistor |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Vce Saturation (Max) | 400mV |
| Rise / Fall Time (Typ) | 3.2µs, 4.7µs |
| Voltage - Output (Max) | 70V |
| Supplier Device Package | 8-SOIC |
| Current - Output / Channel | 150mA |
| Current Transfer Ratio (Max) | 200% @ 10mA |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Turn On / Turn Off Time (Typ) | 7.5µs, 5.7µs |
| Current - DC Forward (If) (Max) | 60mA |
|---|
