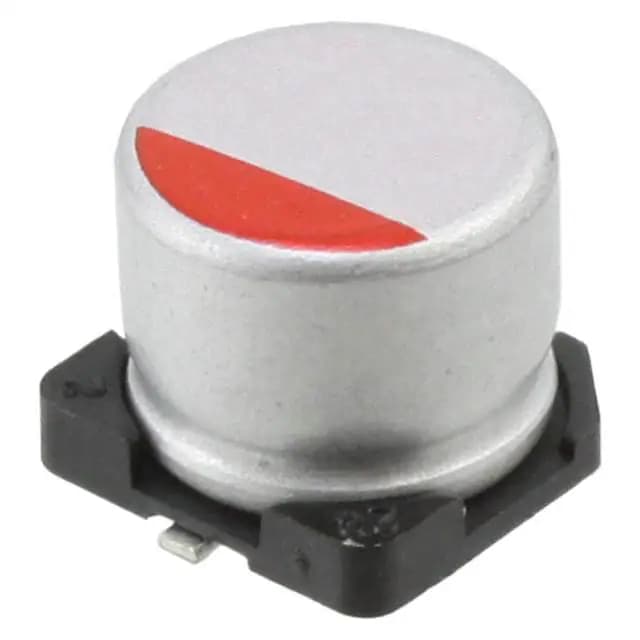

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists RHA0E102MCN1GS produced by Nichicon, a Aluminum - Polymer Capacitors component. Series: FPCAP, RHA. Package: Radial, Can - SMD. Operating Temperature: -55°C ~ 105°C. Part Status: Active. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| RoHS | RoHS |
|---|---|
| Type | Polymer |
| Ratings | - |
| Features | - |
| Impedance | - |
| Tolerance | ±20% |
| Capacitance | 1000 µF |
| Applications | General Purpose |
| Lead Spacing | - |
| Voltage - Rated | 2.5 V |
| Lifetime @ Temp# | 2000 Hrs @ 105°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 8mOhm |
