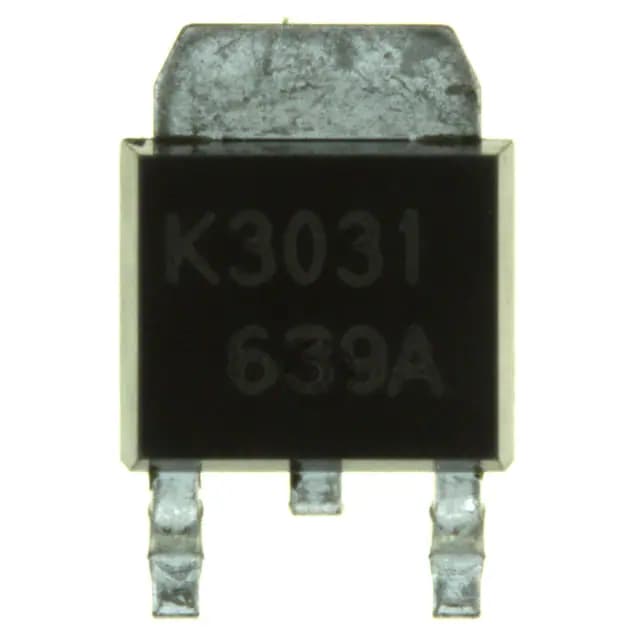

XinhSemi (xinhansemi.com), operated by Shenzhen Xinhan Future Electronics Technology Co., Ltd., is an independent distributor of electronic components. This page lists 2SK303100L produced by Panasonic Electronic Components, a Transistors - FETs, MOSFETs - Single component. Package: U-G1. Operating Temperature: 150°C (TJ). Part Status: Obsolete. Stocked at our Shenzhen warehouse for global shipping. Request a quote with quantity and target price using the inquiry button on the right — our sales team will follow up within one business day. — xinhansemi.com
| FET Type | N-Channel |
|---|---|
| Vgs (Max) | - |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Rds On (Max) @ Id, Vgs | 135 mOhm @ 8A, 10V |
| Power Dissipation (Max) | 1W (Ta), 20W (Tc) |
| Supplier Device Package | U-G1 |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Drain to Source Voltage (Vdss) | 100V |
| Input Capacitance (Ciss) (Max) @ Vds | 300pF @ 10V |
| Drive Voltage (Max Rds On,Min Rds On) | - |
| Current - Continuous Drain (Id) @ 25°C |
| 15A (Tc) |
