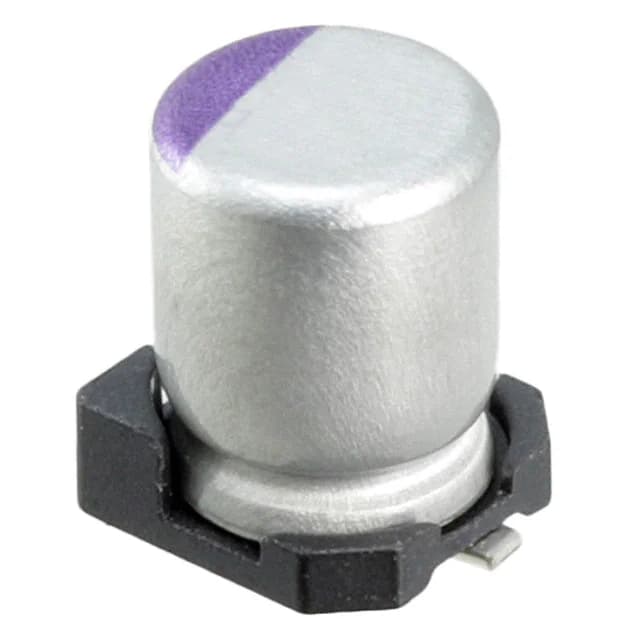

XinhSemi（xinhansemi.com）由深圳市芯瀚未来电子科技有限公司运营，是面向全球的独立电子元器件分销商。本页列出的 10SVP10M 由 Panasonic Electronic Components 生产，属 Aluminum - Polymer Capacitors 类元器件。型号系列：OS-CON™, SVP。封装：Radial, Can - SMD。工作温度：-55°C ~ 105°C。生命周期：Active。深圳仓库现货，支持全球直发。需要批量报价或确认交期，请使用页面右侧"加入询价单"，销售将在 1 个工作日内联系您。— xinhansemi.com
| RoHS | RoHS |
|---|---|
| Type | Polymer |
| Ratings | - |
| Features | - |
| Impedance | - |
| Tolerance | ±20% |
| Capacitance | 10 µF |
| Applications | General Purpose |
| Lead Spacing | - |
| Voltage - Rated | 10 V |
| Lifetime @ Temp# | 2000 Hrs @ 105°C |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| ESR (Equivalent Series Resistance) | 220mOhm |
