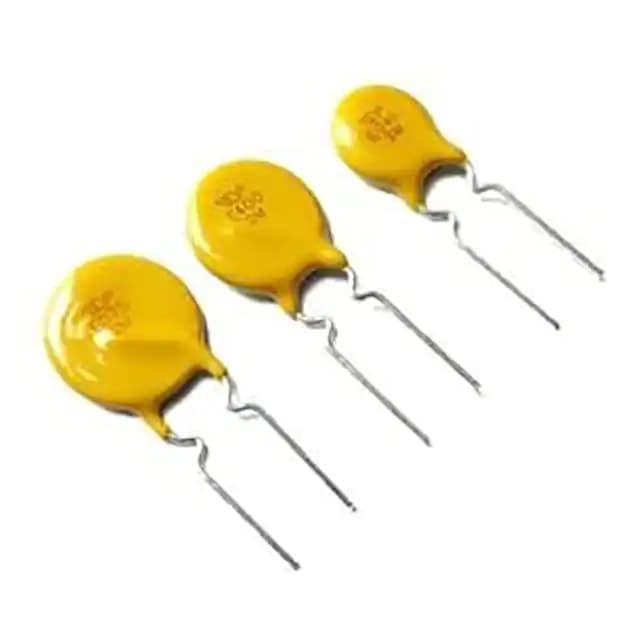

XinhSemi（xinhansemi.com）由深圳市芯瀚未来电子科技有限公司运营，是面向全球的独立电子元器件分销商。本页列出的 AHS010-SM 由 AHS Micro 生产，属 PTC Resettable Fuses 类元器件。型号系列：PolySwitch®, RXEF。封装：Radial, Disc。工作温度：-40°C ~ 85°C。生命周期：Active。深圳仓库现货，支持全球直发。需要批量报价或确认交期，请使用页面右侧"加入询价单"，销售将在 1 个工作日内联系您。— xinhansemi.com
| RoHS | RoHS |
|---|---|
| Type | Polymeric |
| Series | PolySwitch®, RXEF |
| Ratings | - |
| Part Status | Active |
| Lead Spacing | 0.199" (5.05mm) |
| Time to Trip | 4 s |
| Current - Max | 40 A |
| Mounting Type | Through Hole |
| Voltage - Max | 60V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Current - Trip (It) | 100 mA |
| Height - Seated (Max) | 0.457" (11.60mm) |
| Operating Temperature | -40°C ~ 85°C |
| Resistance - 25°C (Typ) | - |
| Current - Hold (Ih) (Max) | 200 mA |
| Resistance - Initial (Ri) (Min) | 2.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 7.5 Ohms |
