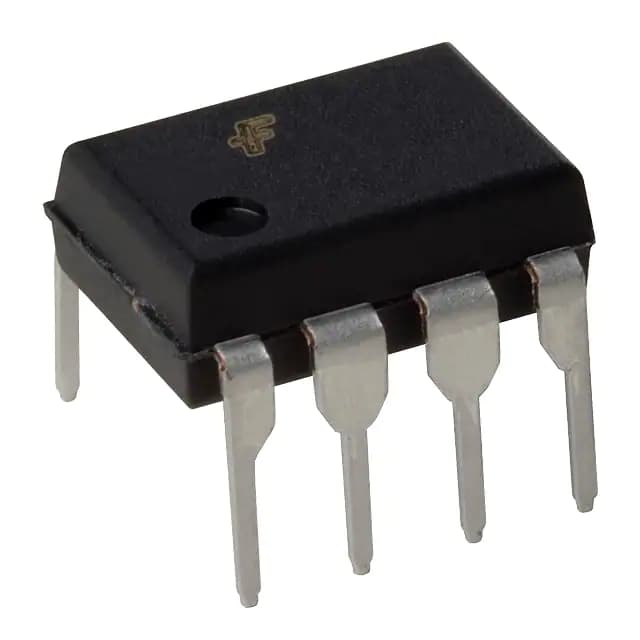

XinhSemi（xinhansemi.com）由深圳市芯瀚未来电子科技有限公司运营，是面向全球的独立电子元器件分销商。本页列出的 FOD3182 由 Fairchild/ON Semiconductor 生产，属 Isolators - Gate Drivers 类元器件。封装：8-DIP (0.260", 6.60mm)。工作温度：-40°C ~ 100°C。生命周期：Active。深圳仓库现货，支持全球直发。需要批量报价或确认交期，请使用页面右侧"加入询价单"，销售将在 1 个工作日内联系您。— xinhansemi.com
| Approvals | UL |
|---|---|
| Technology | Optical Coupling |
| Voltage - Supply | 10 V ~ 30 V |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current - Peak Output | 3A |
| Rise / Fall Time (Typ) | 38ns, 24ns |
| Supplier Device Package | 8-DIP |
| Current - Output High, Low | 2.5A, 2.5A |
| Pulse Width Distortion (Max) | 65ns |
| Voltage - Forward (Vf) (Typ) | 1.43V |
| Current - DC Forward (If) (Max) | 25mA |
| Propagation Delay tpLH / tpHL (Max) | 210ns, 210ns |
| Common Mode Transient Immunity (Min) | 35kV/µs |
