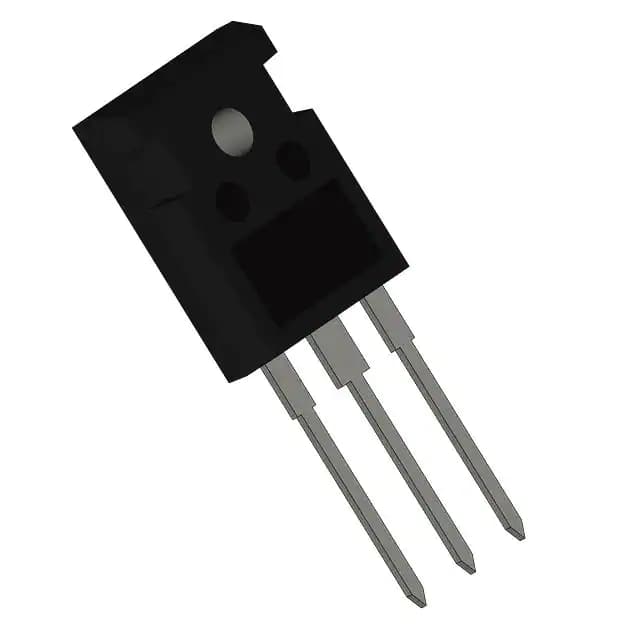

XinhSemi（xinhansemi.com）由深圳市芯瀚未来电子科技有限公司运营，是面向全球的独立电子元器件分销商。本页列出的 IRG4PC50FD-EPBF 由 Infineon Technologies 生产，属 Transistors - IGBTs - Single 类元器件。封装：TO-247-3。工作温度：-55°C ~ 150°C (TJ)。生命周期：Active。深圳仓库现货，支持全球直发。需要批量报价或确认交期，请使用页面右侧"加入询价单"，销售将在 1 个工作日内联系您。— xinhansemi.com
| IGBT Type | - |
|---|---|
| Input Type | Standard |
| Gate Charge | 190nC |
| Power - Max | 200W |
| Test Condition | 480V, 39A, 5 Ohm, 15V |
| Switching Energy | 1.5mJ (on), 2.4mJ (off) |
| Td (on/off) @ 25°C | 55ns/240ns |
| Supplier Device Package | TO-247AC |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 39A |
| Reverse Recovery Time (trr) | 50ns |
| Current - Collector (Ic) (Max) | 70A |
| Current - Collector Pulsed (Icm) | 280A |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
