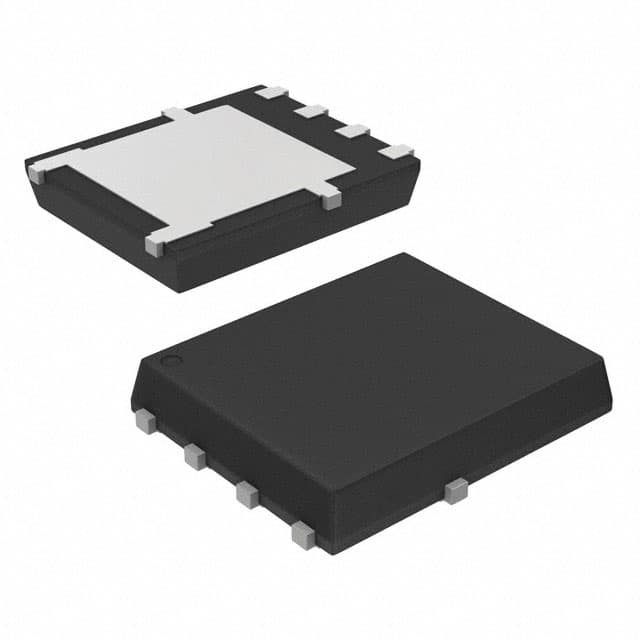

XinhSemi（xinhansemi.com）由深圳市芯瀚未来电子科技有限公司运营，是面向全球的独立电子元器件分销商。本页列出的 NTMFS4943NT1G 由 ON Semiconductor 生产，属 Transistors - FETs, MOSFETs - Single 类元器件。封装：8-PowerTDFN, 5 Leads。工作温度：-55°C ~ 150°C (TJ)。生命周期：Obsolete。深圳仓库现货，支持全球直发。需要批量报价或确认交期，请使用页面右侧"加入询价单"，销售将在 1 个工作日内联系您。— xinhansemi.com
| FET Type | N-Channel |
|---|---|
| Vgs (Max) | - |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Rds On (Max) @ Id, Vgs | 7.2 mOhm @ 30A, 10V |
| Power Dissipation (Max) | 910mW (Ta), 22.3W (Tc) |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Gate Charge (Qg) (Max) @ Vgs | 20.9nC @ 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1401pF @ 15V |
| Drive Voltage (Max Rds On,Min Rds On) | - |
| Current - Continuous Drain (Id) @ 25°C | 8.3A (Ta), 41A (Tc) |
