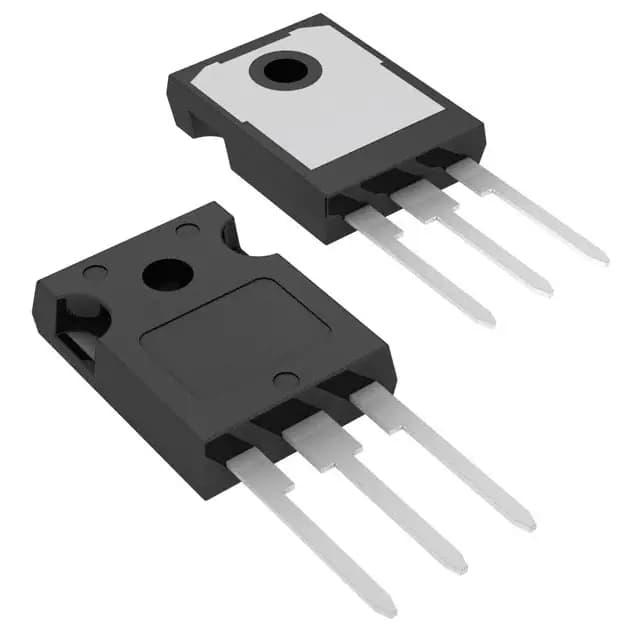

XinhSemi（xinhansemi.com）由深圳市芯瀚未来电子科技有限公司运营，是面向全球的独立电子元器件分销商。本页列出的 HGTG30N60C3D 由 Fairchild/ON Semiconductor 生产，属 Transistors - IGBTs - Single 类元器件。封装：TO-247-3。工作温度：-40°C ~ 150°C (TJ)。生命周期：Not For New Designs。深圳仓库现货，支持全球直发。需要批量报价或确认交期，请使用页面右侧"加入询价单"，销售将在 1 个工作日内联系您。— xinhansemi.com
| IGBT Type | - |
|---|---|
| Input Type | Standard |
| Gate Charge | 162nC |
| Power - Max | 208W |
| Test Condition | - |
| Switching Energy | 1.05mJ (on), 2.5mJ (off) |
| Td (on/off) @ 25°C | - |
| Supplier Device Package | TO-247 |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 30A |
| Reverse Recovery Time (trr) | 60ns |
| Current - Collector (Ic) (Max) | 63A |
| Current - Collector Pulsed (Icm) | 252A |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
