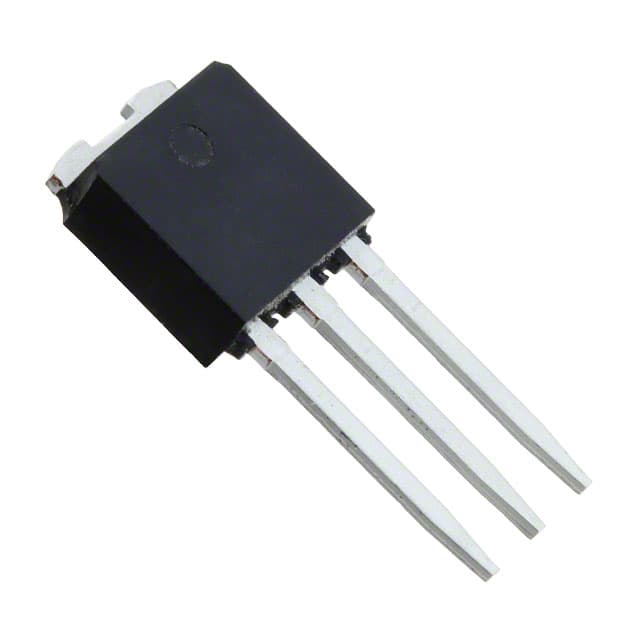

XinhSemi（xinhansemi.com）由深圳市芯瀚未来电子科技有限公司运营，是面向全球的独立电子元器件分销商。本页列出的 STGD18N40LZ-1 由 STMicroelectronics 生产，属 Transistors - IGBTs - Single 类元器件。封装：TO-251-3 Short Leads, IPak, TO-251AA。工作温度：-55°C ~ 175°C (TJ)。生命周期：Obsolete。深圳仓库现货，支持全球直发。需要批量报价或确认交期，请使用页面右侧"加入询价单"，销售将在 1 个工作日内联系您。— xinhansemi.com
| IGBT Type | - |
|---|---|
| Input Type | Logic |
| Gate Charge | 29nC |
| Power - Max | 125W |
| Test Condition | 300V, 10A, 5V |
| Switching Energy | - |
| Td (on/off) @ 25°C | 650ns/13.5µs |
| Supplier Device Package | I-Pak |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 4.5V, 10A |
| Reverse Recovery Time (trr) | - |
| Current - Collector (Ic) (Max) | 25A |
| Current - Collector Pulsed (Icm) | 40A |
| Voltage - Collector Emitter Breakdown (Max) | 420V |
